#Air cleaner usage in automobile..!

#Air Cleaner
This unit is equipped with a paper style air filter and should be cleaned/replaced after every 20 hours of operating.
Note: Operating in usually dusty conditions may require more frequent replacement.

1) Remove air cleaner and cover by release the tab.
2) Clean any excess dirt, oil, or dust from the air cleaner box with a mild detergent and
water solution.
3) Thoroughly dry the air box
4) Replace the air cleaner element.
5) Replace the cleaner cover.

For wet type Air filter , ( Sponge type )

• Remove air filter box
• Remove filter element
• Clean sponge filter element by petrol gently.
• Dry it thoroughly.
• Apply oil gently all over the sponge and squeeze to remove excess oil ( Must )
• Before fixing Filter element clean Air box neatly with a soft cloth.

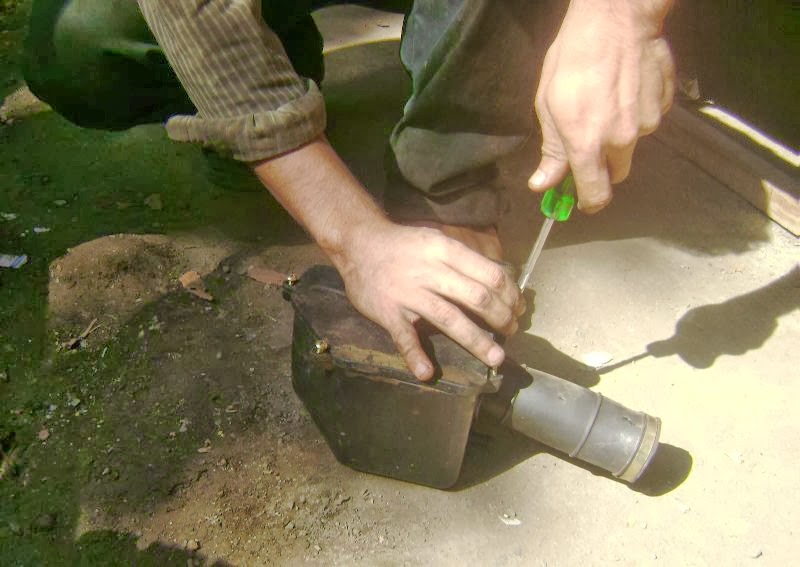

  Air filter box removal.. ( ATV India powersport)






  Sponge filter element









  Dirty Air filter element.












  Cleaning of filter element






  Cleaned filter element









  Refitment of filter element









  Oil application to filter





























  Tank fitment after Air filter box fitment
